The Ears
You've done the hard part, now let's finish with the ears, which are the simplest parts to place heat inserts on!
This is like a little reward for making it through the head, so enjoy this one :)

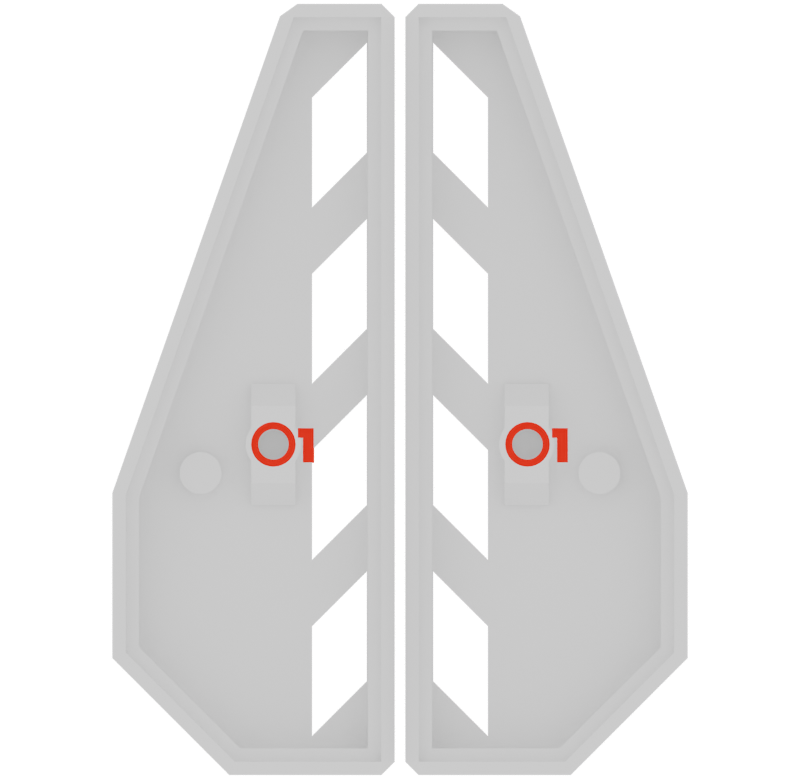

Size and placement
You'll need a single heat insert for each ear :
| ID | Size | Description | Quantity |
|---|---|---|---|
| 1 | M2.5 x 2mm | Ear mounting hole | 1 (x 2) |
The heat insert is used to secure the two parts of an ear together.

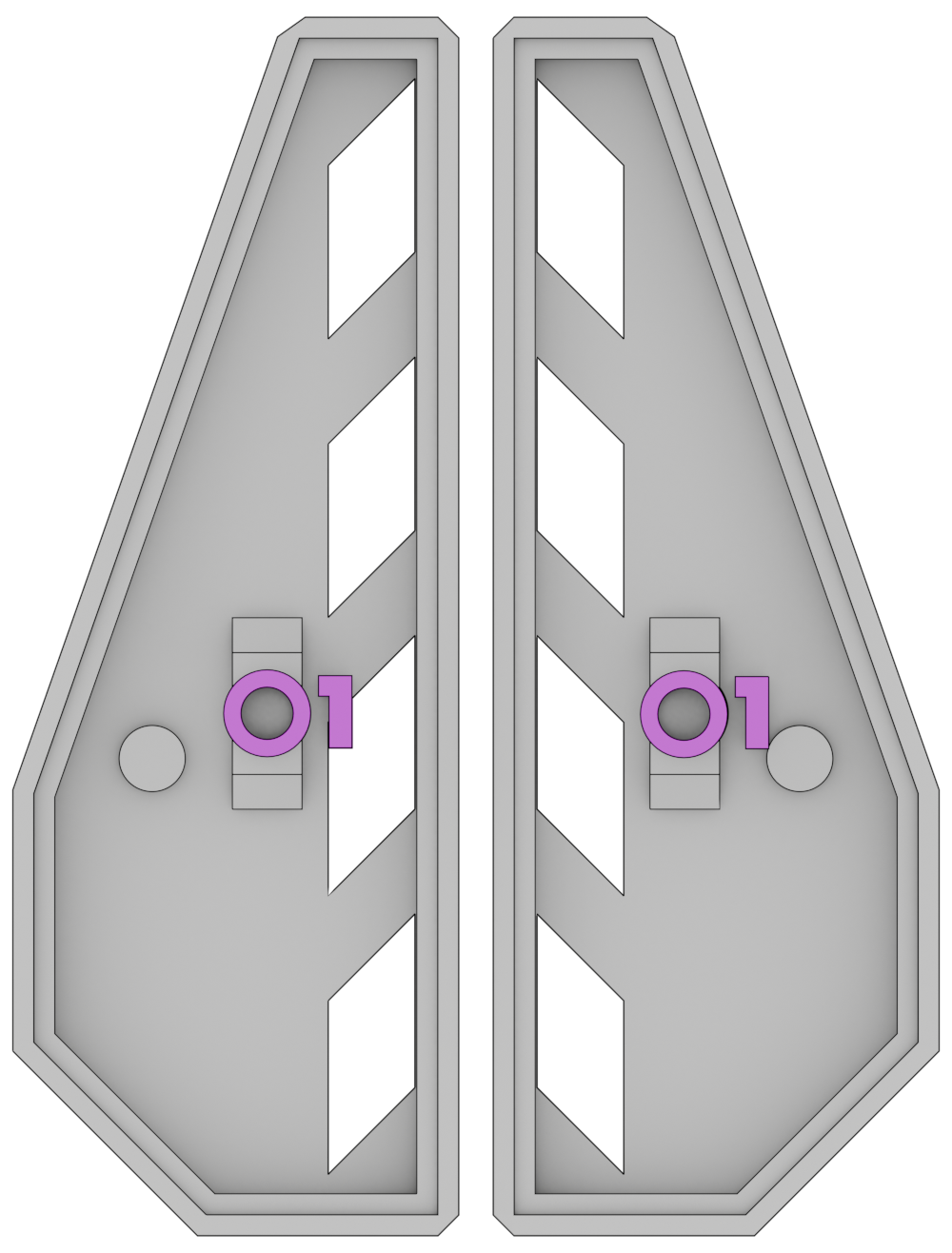

Final inspection
You know the drill by now :)
All good! All the heat inserts are placed on the robot!
If you have leftover heat inserts, you can keep them for future repairs or modifications, as they can be very useful to have on hand.
Let's assemble the robot now, and see all the parts come together!
