The Torso - Top
The top of the torso is the interface between the core of the robot and the Universal Mount.
This part contains a few heat inserts, but they have to be placed carefully as they will experience a lot of stress from the weight of any extension mounted on top of it.
Sizes and placements
For this part, you'll need these heat inserts:
| ID | Size | Description | Quantity |
|---|---|---|---|
| 1 | M2.5 x 4mm | Universal Mount Holes | 4 |
Placing the heat inserts

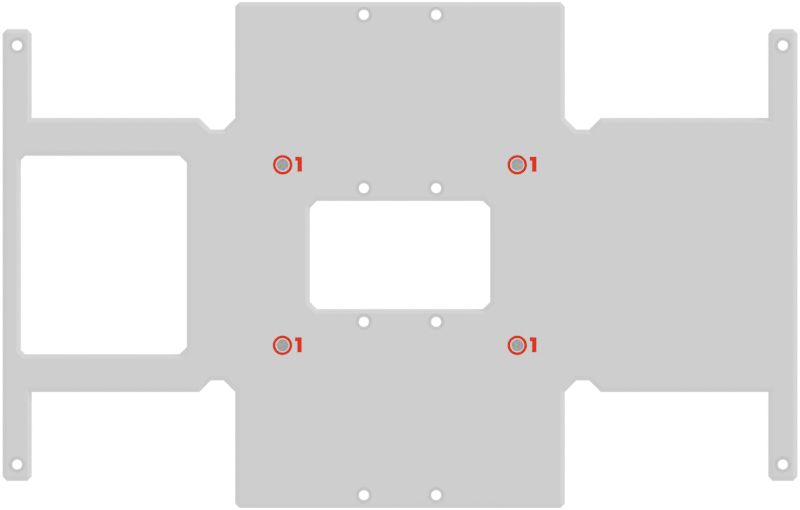

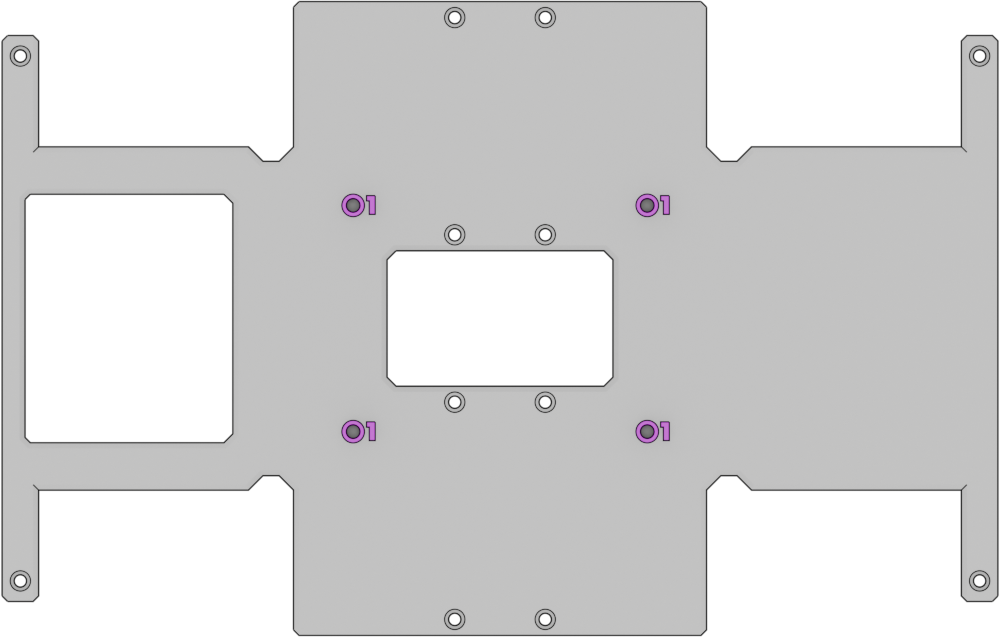

Place the heat inserts as described in the Heat Inserts Guide, making sure to place them in the correct holes as indicated in the image above.
Final inspection
After placing the heat inserts, make sure to inspect the part to check that all the inserts are properly seated and flush with the surface of the part.
If you notice any issues, such as an insert that is not fully seated or is tilted, you can try to reheat it and adjust its position until it is properly placed.
That's it for the top of the torso ! Let's move on to the bottom part now :)
